Name of produc：DP-96-4 Single-phase AC Ammeter
Category Digital A.C. Ammeters > DP-XX-4
Model DP-96-4 Single-phase AC Ammeter
With Programmable Keys
Technical Data
Accuracy: Current Accuracy class 0.5.
Parameters:
Rated current: 5A AC, 1A AC.
Current overload: 1.2 times (Keep)10times/5second.
Internal resistance: Current＜200Mω.
Auxiliary Power Supply:
Rated power:AC/DC 48-240V、AC/DC 80-265V、AC 380V、AC 220V、AC 110V、AC 60V.
Display Features:
High brightness LED display.
Display full range 1-9999 arbitrary variable settings.
Display “HHHH”,when data over 1.4 times the full range.
Operating Environment:
Operating temperature:-10℃~+55℃.
Storage temperature:-25℃~+70℃.
Relative humidity:≤93%，Non corrosive gas sites.
Safety Performance:
Insulation resistance:＞500MΩ.
AC Withstand Voltage:＞AC 2000V.

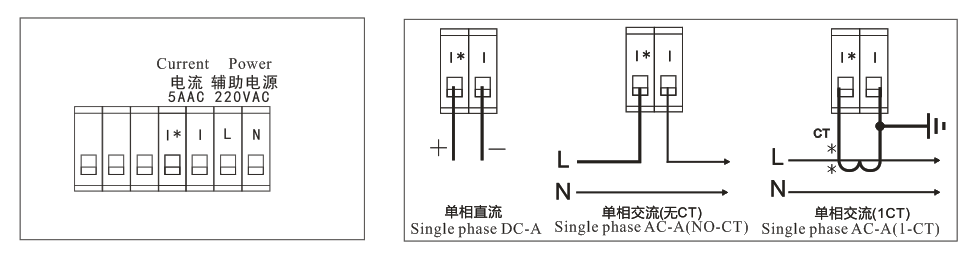

Signal Wiring Diagram :
