Name of produc：DP-S96-3 Digital Power Meter
Category Digital Power Meter > DP-XX-3
Model DP-S96-3 Single Phase Power Meter
With
Programmable Keys
Technical
Data
Accuracy: Active power Accuracy class
0.5.
Parameters:
Rated voltage: AC 57.7V、AC 100V、AC 220V、AC 380V.
Rated current: AC 5A、AC 1A.
Overload Rating current: 1.2X rating
(continuous) ,10X rating for 5 seconds.
Overload Rating voltage: 1.2X rating
(continuous) ,2X rating for 1 seconds.
Internal resistance: Current＜200mΩ,Voltage≥1kΩ/ V.
Frequency:45~65Hz.
Auxiliary
Power Supply:AC/DC 48~240V、AC/DC
80~265V、AC 380V、AC 220V、AC 110V、AC 60V.
Display
Features: Highlight
LED Display.
Operating
Environment:
Operating temperature:-10℃~+55℃.
Storage temperature:-25℃~+70℃.
Relative humidity≤93%，Non
corrosive gas.
Safety
Performance:
Insulation resistance: ＞100MΩ
AC withstand voltage: ＞AC 2000V
EMC:
ESD:
Level 4
Surge:
Level 4
RF:
Level 3
EFT:
Level 3

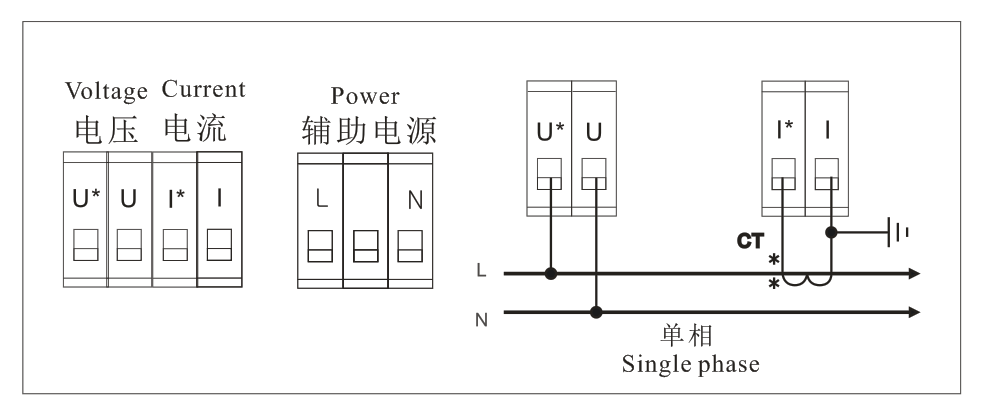

Signal
Wiring Diagram:
